Run and Analyze

Run Gaia¶

Make sure that the simulation folder (e.g., /gaia2d-tutorial/) contains at least the following files (or similar, depending on the simulation case):

• A computational mesh, for example, in the form of qgismesh.slf.

• A hydrodynamic boundary definitions file, for example, in the form of boundaries.cli.

• A Gaia boundary definitions, for example, in the form of boundaries-gaia.cli.

• A results file of a Telemac2d/3d simulation for a hotstart initialization, for example, for 35 m$^3$/s in the form of r2dsteady.slf (result of the dry-initialized steady run ending at t=15000).

• A Telemac2d steering file, such as steady2d-gaia.cas.

• A Gaia steering file, such as gaia-morphodynamics.cas.

/------------------------------------------------------------------/
/ Gaia in TELEMAC
/ GAIA STEERING FILE
/ file name: gaia-morphodynamics.cas
/
/------------------------------------------------------------------/
/                    COMPUTATION ENVIRONMENT
/------------------------------------------------------------------/
/
BOUNDARY CONDITIONS FILE : boundaries.cli
GEOMETRY FILE : qgismesh.slf
RESULTS FILE : rGaia-steady2d.slf
VARIABLES FOR GRAPHIC PRINTOUTS : B,E,M,MU,N,P,QSBL,TOB
MASS-BALANCE : YES
/
/ NUMERICAL OPTIONS
/------------------------------------------------------------------/
FINITE VOLUMES : NO
/------------------------------------------------------------------/
/
/------------------------------------------------------------------/
/ RIVERBED COMPOSITION
/------------------------------------------------------------------/
/
/ SEDIMENT
CLASSES TYPE OF SEDIMENT : NCO;NCO;NCO / CO-cohesive or NCO-non-cohesive
CLASSES SEDIMENT DIAMETERS : 0.0005;0.02;0.1 / in m
CLASSES SEDIMENT DENSITY : 2680;2680;2680 / in kg per m3
/
/ RIVERBED LAYERS - manual section 3.2.1
ACTIVE LAYER THICKNESS : 0.3 / multiple of D90 - default is 10000
NUMBER OF LAYERS FOR INITIAL STRATIFICATION : 3 / default is 1
LAYERS INITIAL THICKNESS : 1.5 / m - default is 100
/
/------------------------------------------------------------------/
/ BEDLOAD
/------------------------------------------------------------------/
/
/ BOUNDARIES
PRESCRIBED SOLID DISCHARGES : 10.;0.
/
BED LOAD FOR ALL SANDS : YES / deactivate with NO
BED-LOAD TRANSPORT FORMULA FOR ALL SANDS : 1 / MPM - see table for more
CLASSES SHIELDS PARAMETERS : 0.047;0.047;0.047
MPM COEFFICIENT : 8
/
/ BEDLOAD DIRECTION - manual sec. 3.1.4-3.1.7
SLOPE EFFECT : YES / default is YES - set to NO to disable
FORMULA FOR DEVIATION : 1 / use 2 for talmon-1995 approach
FORMULA FOR SLOPE EFFECT : 1 / default is 1 (koch-flokstra) change to 2 for soulsby
BETA : 1.3 / only with koch-flokstra - default is 1.3
/
/ SECONDARY CURRENTS - manual sec. 3.1.7
SECONDARY CURRENTS : YES / default is NO
SECONDARY CURRENTS ALPHA COEFFICIENT : 0.8 / default is 1.
/
/ FRICTION
SKIN FRICTION CORRECTION : 1 / set 0 to disable correction in shallow waters
RATIO BETWEEN SKIN FRICTION AND MEAN DIAMETER : 3. / default is 3.
/
/------------------------------------------------------------------/
/ SUSPENDED LOAD
/------------------------------------------------------------------/
/
SUSPENSION FOR ALL SANDS : YES / deactivate with NO
/
SUSPENSION TRANSPORT FORMULA FOR ALL SANDS : 1
/
/ NUMERICAL PARAMETERS
SCHEME FOR ADVECTION OF SUSPENDED SEDIMENTS : 14
/
/ ADDITIONAL SEDIMENT - manual section 4.2
CLASSES SETTLING VELOCITIES : -9;-9;-9 / use Gaia defaults
CLASSES CRITICAL SHEAR STRESS FOR MUD DEPOSITION : 1000;1000;1000 / N per m2
LAYERS PARTHENIADES CONSTANT : 1.E-03 / in kg per m2 per s - default is 1.E-03

With these files available, open Terminal, go to the TELEMAC configuration folder (e.g., ~/telemac/v9.0.0/configs/), and load the environment (e.g., pysource.openmpi.sh - use the same as for compiling TELEMAC).

cd ~/telemac/v9.0.0/configs
source pysource.openmpi.sh

With the TELEMAC environment loaded, change to the directory where the TELEMAC Gaia simulation lives (e.g., /home/telemac/v9.0.0/mysimulations/gaia2d-tutorial/) and run the *.cas file by calling it with the telemac2d.py script (it will automatically know that it needs to use Gaia when it reads the line COUPLING WITH : 'GAIA').

cd ~/telemac/v9.0.0/mysimulations/gaia2d-tutorial/
telemac2d.py steady2d-gaia.cas

A successful computation should end with the following lines (or similar) in Terminal:

[...]
                    *************************************
                    *    END OF MEMORY ORGANIZATION:    *
                    *************************************

CORRECT END OF RUN

ELAPSE TIME :
                             1  HOURS
                             4  MINUTES
                            34  SECONDS
... merging separated result files

... handling result files
       moving: r2dsteady-gaia.slf
       moving: rGaia-steady2d.slf
       moving: r-control-sections.txt
... deleting working dir

My work is done

TELEMAC will write the files r2dsteady-gaia.slf, rGaia-steady2d.slf, and r-control-sections.txt in the simulation folder. These result files are also available in this eBook’s modeling repository for accomplishing the post-processing tutorial:

• Download r2dsteady-gaia.slf (hydrodynamics results)

• Download rGaia-steady2d.slf (morphodynamics results)

• Download r-control-sections.txt (control section fluxes)

Post-processing¶

Control Section Fluxes¶

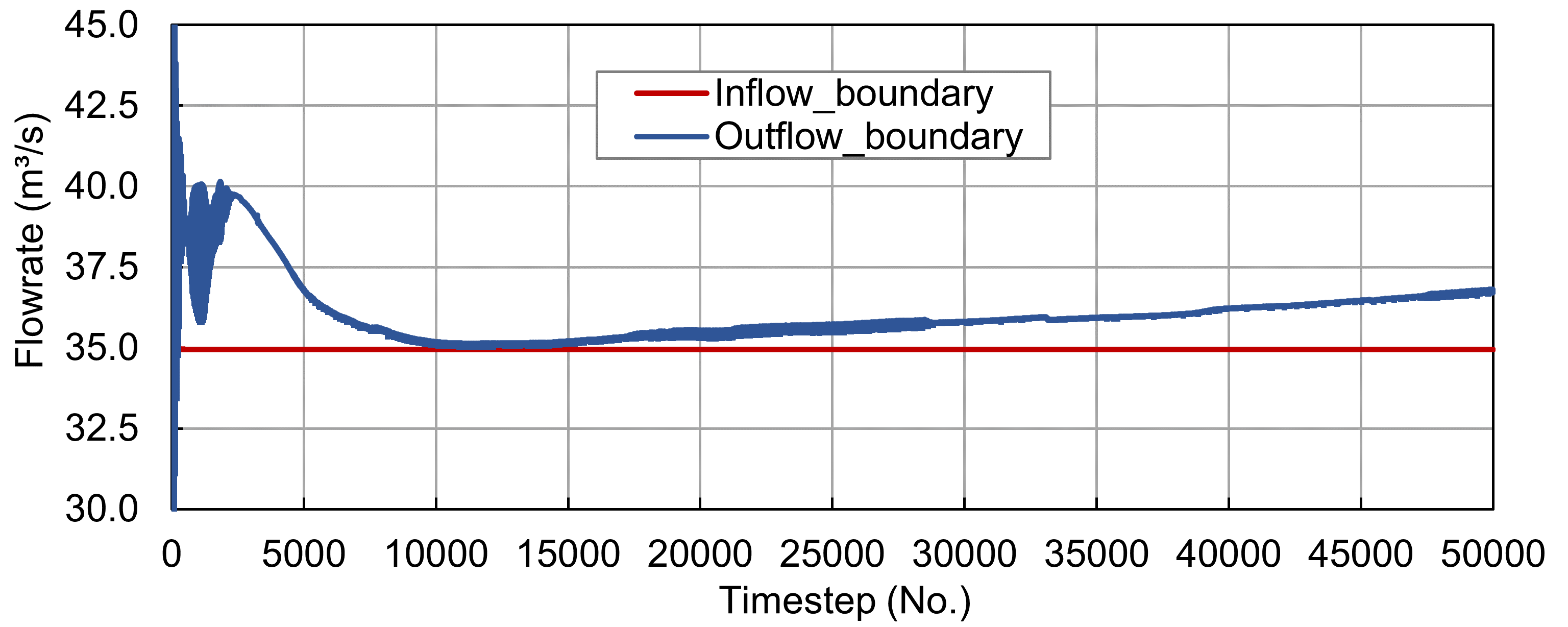

The control sections enable insights into the correct adaptation of the flow at the upstream and downstream boundaries (prescribed Q only). Figure 1 shows the modeled flow rates where the Inflow_boundary and Outflow_boundary curves converge after approximately 10000 timesteps. Note that the graph shows absolute numbers while the original output in r-control-sections.txt is negative because of the order of node definitions in control-sections.txt. The hotstart initialization makes that the fluxes fluctuate around the prescribed inflow of 35 m$^{3}$/s from the beginning. The Outflow_boundary flowrate increase toward the end of the simulation can be attributed to sediment erosion and the free flux downstream boundary type (544-4).

Visualization with QGIS¶

The results of the Gaia simulation can be visualized and time snapshots exported to raster (e.g., GeoTIFF) or shapefile formats by using the PostTelemac plugin in QGIS the same way as explained in the steady2d tutorial. The latest QGIS releases additionally enable loading of a Selafin (results) mesh file (here: r2dsteady-gaia.slf) as QGIS mesh layer, which can then be visualized in the viewport and exported to a video with the Crayfish plugin. To this end, launch QGIS, set the project CRS to EPSG:25833 (ETRS89 / UTM zone 33N), and save the new project in the gaia2d-tutorial/ folder (or where ever the Gaia simulation files live). In QGIS’ Browser panel, find the Project Home folder, expand it, and drag-and-drop the two simulation results meshes (r2dsteady-gaia.slf and rGaia-steady2d.slf) to the Layers panel.

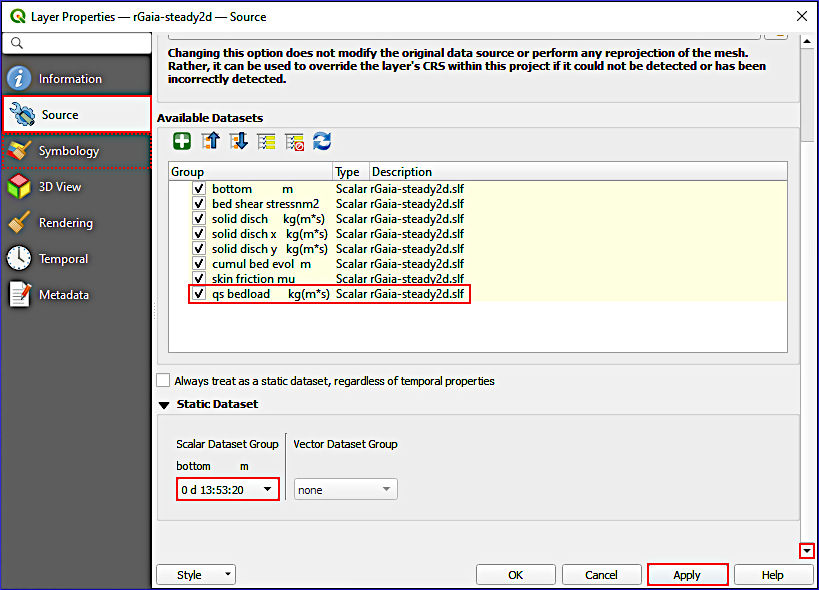

Double-click on r2dsteady-gaia.slf or rGaia-steady2d.slf to open their Mesh Layer Properties, then go to the Source tab to toggle hydrodynamic (e.g., water depth or scalar flowrate m2s) or morphodynamic Gaia (e.g., qs bedload kg(ms)) simulation parameters, respectively, at different timesteps. Figure 2 shows the QGIS mesh Layer Properties window of the rGaia-steady2d.slf simulation results geometry where red boxes highlight steps for toggling output variables and visualization timesteps. In addition, the Symbology tab provides options for value color scales or vector representations (e.g., for velocity vectors in r2dsteady-gaia.slf).

Note that only parameters defined with the VARIABLES FOR GRAPHIC PRINTOUTS keywords in the hydrodynamic (steady2d-gaia.cas) and morphodynamic (gaia-morphodynamics.cas) steering files can be plotted in QGIS.

To export a video of the simulation results, use the Crayfish plugin:

• In QGIS, make sure the Crayfish plugin is installed (recall the QGIS instructions).

• In the Layer panel, select rGaia-steady2d (or r2dsteady-gaia).

• With rGaia-steady2d (or r2dsteady-gaia) selected, go to Mesh (top dropdown menu) > Crayfish > Export Animation ... (if the layer is not highlighted, an error message pops up: Please select a Mesh Layer for export).

• In the Export Animation window, go to the General tab and define an output file name by clicking on the ... button (e.g., velocity-video.avi).

• Optionally adapt the Layout and Video settings.

• Click OK to start the video export.

The first time that a video is exported, Crayfish will require the definition of an FFmpeg video encoder and guide through the installation (if required). Follow the instructions and re-start exporting the video. The following video was exported with Crayfish to visualize velocity vectors:

Video: Sebastian Schwindt @ Hydro-Morphodynamics channel on YouTube.

Note how the velocity vectors evolve over time and that high flow velocities occur at ramps/sills in the river section (e.g., the two transversal maxima close to the upstream boundary or the transversal maximum close to the downstream boundary). Accordingly, the bedload transport at the ramps should also be pronounced. The following video shows qs bedload to verify whether the model got the physical link between flow velocity and bedload right.

Video: Sebastian Schwindt @ Hydro-Morphodynamics channel on YouTube.

After watching the video, it can be concluded that the relationship between flow velocities and bedload is approximately correct, but the model may require some correction by adapting magnitude and direction parameters. The next section exemplarily illustrates how the physical soundness of the model can be analyzed and improved.

Plausibility¶

The above-shown results feature steady-state bedload and suspended load transport in an armored-bed river section at a low baseflow discharge of 35 m$^{3}$/s. The comparison of the flow velocity and the sediment transport videos suggests that the highest sediment transport rates occur where the flow velocity is high, too. Three sediment size classes were defined in the Basic Setup of Gaia with average grain diameters of 0.0005 m, 0.02 m, and 0.1 m. The simulation predicts that only the finest grain size class will move at baseflow (e.g., in the console output during the simulation). This fine sediment class of 0.5-mm diameters (sand) is transported in the form of bedload and in suspension with no measurable effect on bed elevation. Thus, the model can be assumed to be basically physically reasonable, in particular, considering that nearly no change of the riverbed elevation is modeled despite the local sediment transport peak for fine sediment. Still, to verify the physical plausibility of a morphodynamic model, higher (flood) discharges should be test-simulated. Then the coarser grain sizes of 0.02 m (gravel) and 0.1 m (cobble) should also move.

Also water depth, flow velocity (vectors), and Topographic change should be analyzed (in QGIS or BlueKenue) since Gaia modifies riverbed elevations. For instance, if the model predicts Topographic change in the form of 10-m deep erosion (scour) at baseflow, the keyword definitions for the riverbed should be revised. Likewise, hydro-morphodynamically relevant parameters such as friction, or direction and magnitude (bedload) correctors should be verified.

When a model is finally and approximately physically meaningful, the model can be calibrated with observation data. The next section provides a list of keywords that may be used for calibrating Bedload and/or Suspended load simulations with Gaia.

Calibration¶

This section assumes that the model is already hydrodynamically calibrated (e.g., regarding friction) as described in the steady modeling section. Gaia can then be used to model a flood hydrograph with an unsteady (quasi-steady) simulation. The calibration requires that riverbed elevation measurements from before and after the flood are available (i.e., an event-specific Topographic change map).

Bedload Calibration Parameters¶

The following list of parameters can be considered for calibrating bedload in Gaia:

• Representative roughness length $k'_{s}$ (cf. Equation (11)) with the keyword RATIO BETWEEN SKIN FRICTION AND MEAN DIAMETER $\alpha_{ks}$ (default: $\alpha_{ks}$=3.). Note that this keyword is a multiplier of the mean grain diameter $D_{50}$; thus: $k'_{s}= \alpha_{ks} \cdot D_{50}$ (goes into Equation (11)):

  • To use this calibration parameter, make sure that SKIN FRICTION CORRECTION : 1.

  • On dune-form sand riverbeds, start with $\alpha_{ks}$=37. Mendoza et al., 2017.

  • In alternating bar riverbeds, start with $\alpha_{ks}$=3.6 Mendoza et al., 2017.

  • Increasing $\alpha_{ks}$ increases the skin friction and thus bedload transport rates.

• For models based on the Meyer-Peter and Müller formula (i.e., using a Shields parameter for incipient sediment motion), the CLASSES SHIELDS PARAMETERS keyword may be modified:

  • If erosion is overpredicted, increase CLASSES SHIELDS PARAMETERS.

  • If erosion is underestimated, reduce CLASSES SHIELDS PARAMETERS.

  • Typical range: 0.03-0.06 for uniform sediments, up to 0.07 for armored beds.

• The MPM COEFFICIENT can be adjusted (default: 8):

  • Original Meyer-Peter and Müller value: 8

  • Wong-Parker correction for plane beds: 3.97 (with CLASSES SHIELDS PARAMETERS : 0.0495)

  • Reduce to decrease overall bedload transport rates.

• With slope correction enabled and using the Koch & Flokstra (1980) correction formulae, adapt the BETA keyword from Equation (12) (default is BETA : 1.3):

  • If erosion in curved channel sections is overpredicted, decrease BETA.

  • If erosion in curved channel sections is underpredicted, increase BETA.

  • Typical range: 1.0-2.0.

• To adjust deposition and erosion pattern in curves (riverbends), enable the SECONDARY CURRENTS keyword and modify the SECONDARY CURRENTS ALPHA COEFFICIENT value (cf. Secondary Currents):

  • Default: 1.0 (smooth bed)

  • For rough beds: 0.75

  • Affects helical flow intensity and thus lateral sediment redistribution.

• The HIDING FACTOR FORMULA keyword (for multi-class sediment) controls how finer particles are hidden by coarser ones:

  • 0: No hiding (each class independent)

  • 1: Egiazaroff formula (default)

  • 2: Ashida & Michiue formula

  • 4: Karim, Holly & Yang formula

  • Affects relative mobility of different sediment classes.

Suspended Load Calibration Parameters¶

The following list of parameters can be considered for calibrating suspended load transport and deposition-erosion pattern in Gaia:

• CLASSES SETTLING VELOCITIES:

  • Reduce to enhance transport length and reduce deposition rates

  • Increase to shorten transport trajectories and enhance deposition

  • Set to -9 to use Gaia’s automatic calculation based on grain size

• CLASSES CRITICAL SHEAR STRESS FOR MUD DEPOSITION:

  • Reduce to keep sediment in suspension longer (deposition only at lower shear stresses)

  • Increase to allow deposition at higher shear stresses

  • Default of 1000 N/m² effectively disables the deposition threshold

• LAYERS PARTHENIADES CONSTANT (erosion rate constant $M$):

  • Increase to enhance erosion rates

  • Decrease to reduce erosion rates

  • Typical range: 1.E-04 to 1.E-02 kg/(m²·s)

• LAYERS CRITICAL EROSION SHEAR STRESS OF THE MUD:

  • Increase to reduce erosion (higher threshold)

  • Decrease to enhance erosion (lower threshold)

  • Varies with sediment consolidation; typical range: 0.01-1.0 N/m²

• DIFFUSION COEFFICIENT (or rely on turbulence model):

  • Higher values increase lateral spreading of suspended sediment

  • Lower values concentrate sediment plumes

What next?

The calibrated model will also require validation. The validation requires another set of riverbed elevation measurements from before and after another flood (i.e., an additional event-specific Topographic change map). Alas, Topographic change maps are expensive and it is rare to have at least three DEMs from different points in time for a river section, which would enable the creation of two Topographic change maps. For this reason, the calibration dataset is often split in practice. For instance, 2/3 of a Topographic change map may be used for model calibration and 1/3 for model validation. However, such splitting makes that the two datasets are not statistically independent and the validation quality figures will be biased.
